HP 350 discharge reducer — to Ø350mm
Pre-order

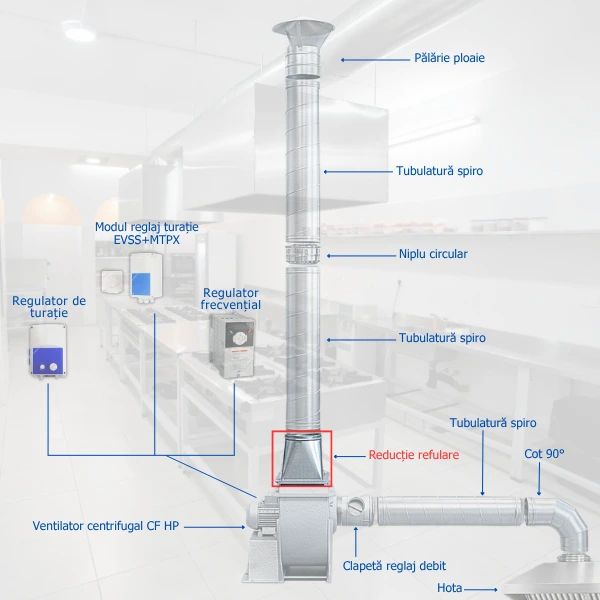

HP 350 discharge reducer — galvanised steel transition accessory for connecting CF 3 HP, CF 4 HP and CF 5.5 HP fans to Ø350 mm circular extract ductwork. Compatible with three models:
- CF 3 HP — 395×330 mm discharge → Ø350 mm
- CF 4 HP — 465×330 mm discharge → Ø350 mm
- CF 5.5 HP — 465×360 mm discharge → Ø350 mm
For high-airflow professional kitchens — large restaurants, hotels, catering facilities.
Quick Buy
-
RRCF350
-
2.500 Kgs
The HP 350 discharge reducer covers three higher-power models in the CF HP range — CF 3 HP, CF 4 HP and CF 5.5 HP.
All three fans connect to Ø350 mm circular extract ductwork, making the HP 350 the common accessory for this power bracket despite differing rectangular discharge dimensions: CF 3 HP: 395×330 mm, CF 4 HP: 465×330 mm, CF 5.5 HP: 465×360 mm
Verify the fan model at ordering to confirm dimensional compatibility.
APPLICATION SEGMENT — HIGH-AIRFLOW KITCHENS: The CF 3 HP through CF 5.5 HP range serves high-output professional kitchens — large capacity restaurants, hotel restaurants with 100+ covers, industrial canteens, high-volume fast food operations.
At these airflow rates, Ø350 mm ductwork maintains air velocity within acceptable acoustic and technical limits.
