Wall fan TX 9 WL

Price excl. tax: €32758
Price inc. tax: €38983

Pre-order

TX 9 WL

TRADITIONAL T-SERIES - 9" - WALL MODELS

Extract/intake fans in 4 sizes: 6”, 7”, 9” and 12” •

Patented electronic shutter system ensures quiet, trouble free operation

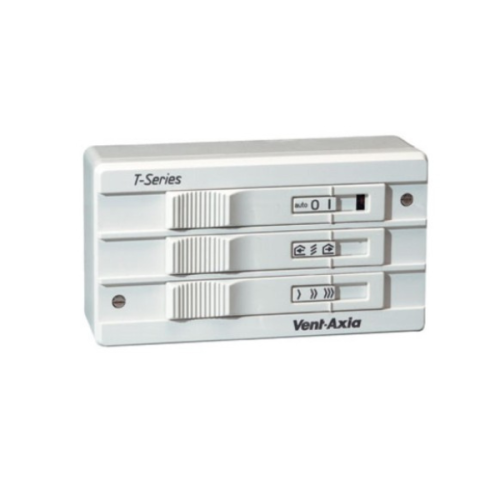

To obtain the best from your fan, use the Ecotronic controller •

Shutter open/fan off mode

Low sound levels

Easy fit connector Top Socket, standard on all models



  • Air flow:
    870 m3/h
  • Motor type:
    AC motor
  • Motor power:
    0.083 kW
  • Voltage:
    220/240 V - 50 Hz
Add to wishlist

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
  • 163510A
  • 7.700 Kgs

The T-Series fan range is fitted with a Vent-Axia M-Tech motor, developed to improve performance, lower running costs and maintain the T-Series’ rugged reliability. A patented speed control pack is simply plugged in one of 3 positions to provide low, medium or boost speed matching the fan performance to the requirements of the installation.

Instantaneous Shutter

With energy saving in mind T-Series Fitting Kits are supplied complete with an integral instantaneous automatic louvre shutter concealed behind the interior grille. It operates on both extract and intake and at any angle of mounting. When the fan is used with a T-Series or Ecotronic controller, the shutter can be set open with the fan motor switched off to provide natural ventilation without the security risk of an open window.

Top Socket

A connector Top Socket is standard on all T-Series fans allowing fast and trouble-free mains connection.

Easy Cleaning

Integrated component design allows all parts to be dismantled for cleaning without the use of specialist tools.

Electrical

Motor purpose-designed. Suitable for running at any angle. Quiet running. Suitable for operation in ambient temperatures from -40°C to +50°C. Fitted with Standard Thermal Overload Protection (S.T.O.P.).

Supply voltage 220-240V/1/50Hz.

Wall Kits

Designed to fit into most double brick walls using the telescopic liners, supplied. Additional liners are available to accommodate exceptionally thick brick walls.

  • Air flow:
    870 m3/h
  • Suction size:
    250 mm
  • Motor type:
    AC motor
  • Motor power:
    0.083
    kW
  • Voltage:
    220/240 V - 50 Hz
  • Mounting:
    On wall
FileInfo
commercial_-_t-series_wall [PDF, 257.3 KB]
